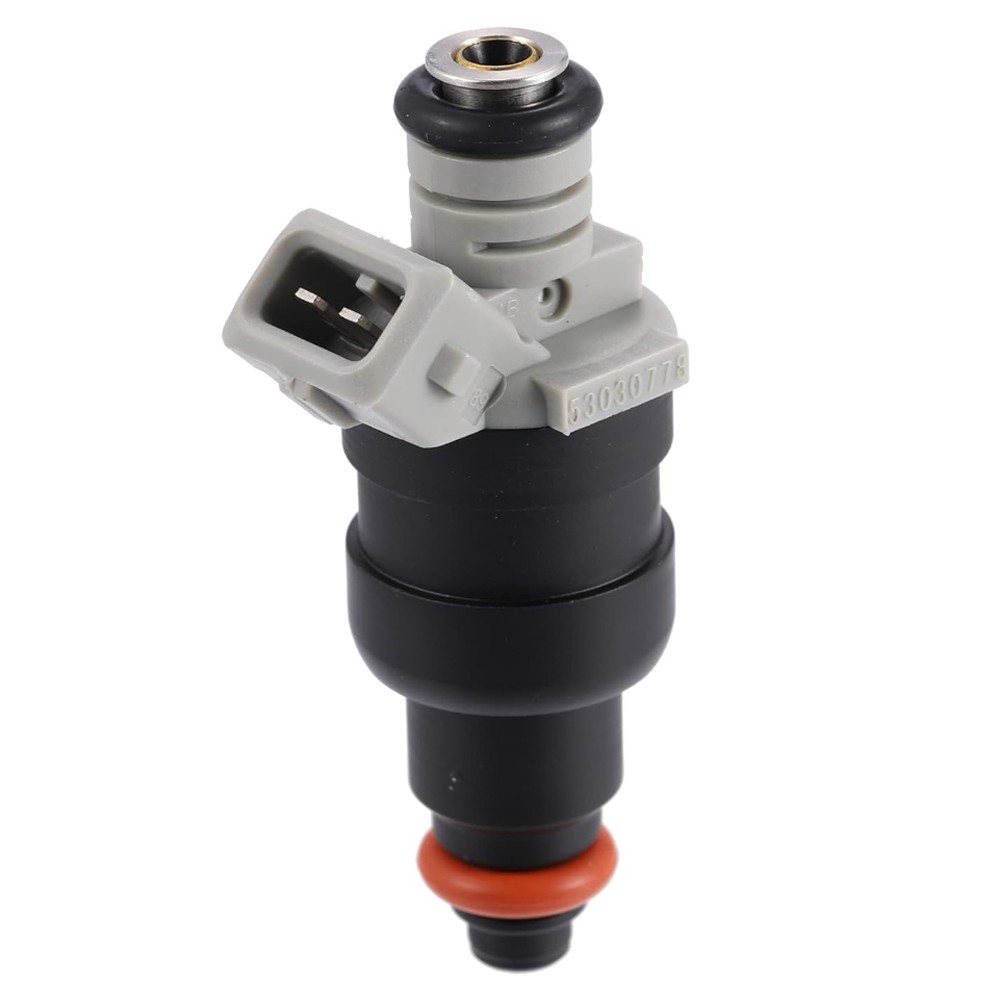

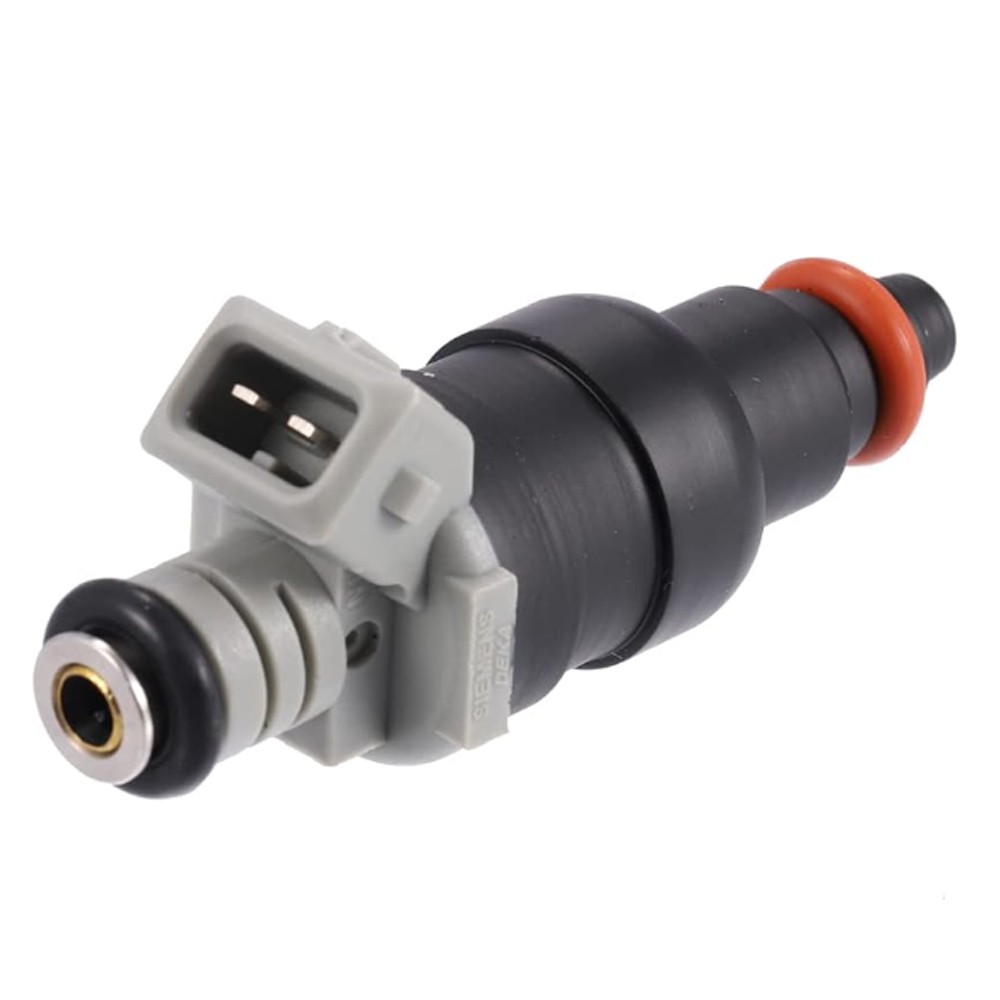

Injector Nozzle

An injector nozzle is a vital component of the fuel injection system in internal combustion engines. It plays a crucial role in delivering fuel to the engine's combustion chambers with precision, ensuring optimal combustion and engine performance.

OE Number

Function of the Injector Nozzle
The primary function of an injector nozzle is to atomize the fuel and spray it into the combustion chamber at the correct angle and pressure. This atomization process ensures that the fuel mixes thoroughly with the air, promoting efficient and complete combustion. The injector nozzle is responsible for:
- Delivering the right amount of fuel
- Ensuring fine atomization of the fuel
- Maintaining the proper spray pattern and angle
- Timing the injection accurately according to the engine's operating conditions

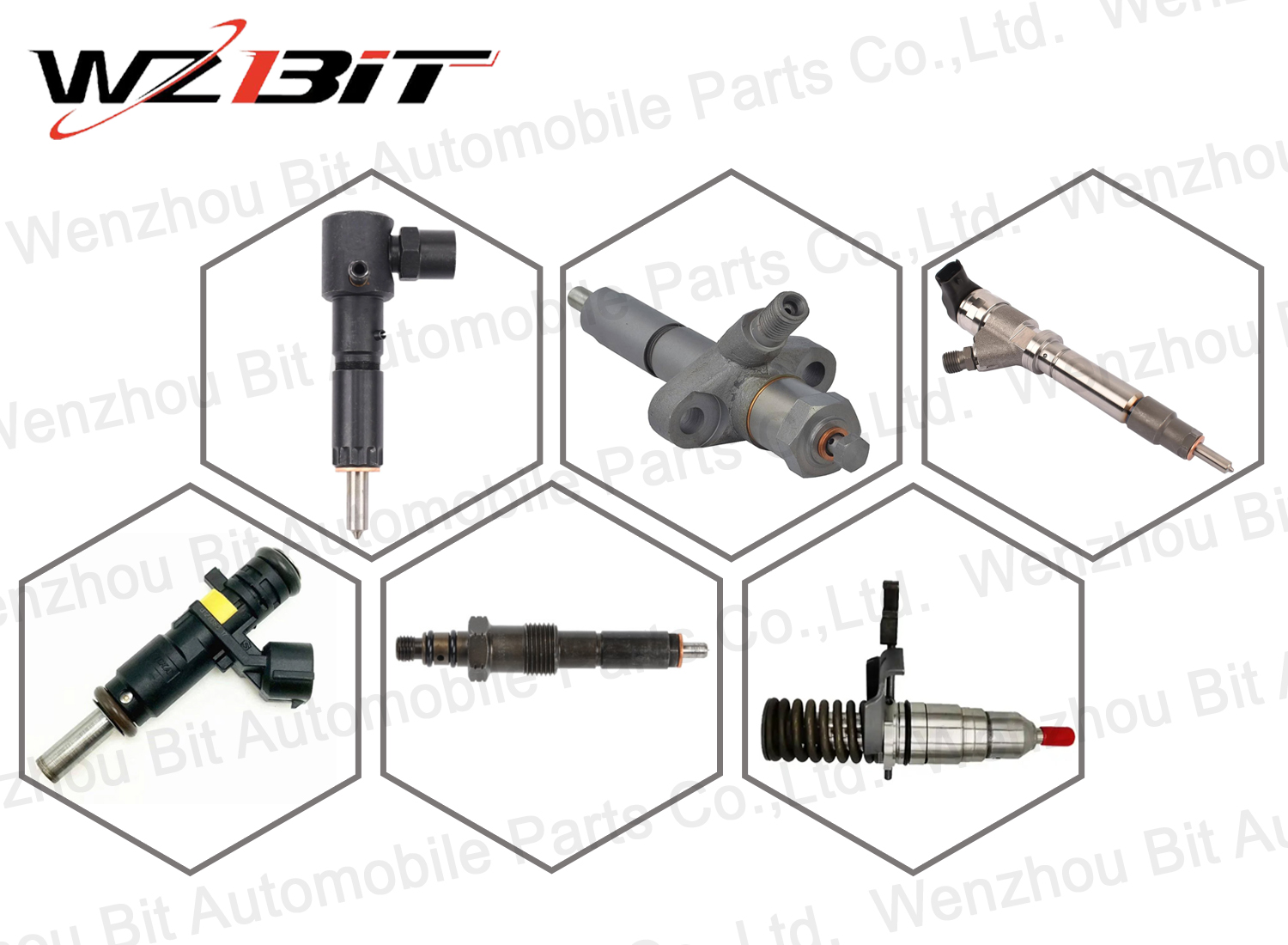

Types of Injector Nozzles
1. Single Hole Nozzles:
- Typically used in older engines.
- Feature a single hole through which fuel is sprayed.
- Simpler design but less efficient atomization.
2. Multi-Hole Nozzles:
- Common in modern engines.
- Feature multiple holes to improve fuel atomization and spray pattern.
- Enhance combustion efficiency and reduce emissions.
3. Pintle Nozzles:
- Feature a pintle valve that helps to shape the spray pattern.
- Common in gasoline engines.
4. VCO (Valve Covered Orifice) Nozzles:
- Used in modern diesel engines.
- Feature a valve that uncovers the orifice when injecting fuel, offering better control over spray pattern and atomization.

Working Principle
Injector nozzles operate based on the principle of high-pressure fuel injection. Here's a simplified breakdown of the process:
1. High-Pressure Fuel Supply: Fuel is pressurized by the fuel pump and delivered to the injector.
2. Electronic Control: The engine control unit (ECU) sends signals to the injector to open at precise times.
3. Injection: When the injector receives the signal, the nozzle opens, allowing high-pressure fuel to be sprayed into the combustion chamber.
4. Atomization: The nozzle's design ensures that the fuel is atomized into fine droplets, facilitating efficient mixing with air.
5. Combustion: The air-fuel mixture ignites, driving the engine.

Symptoms of a Faulty Injector Nozzle
1. Engine Misfires: Inconsistent or improper fuel delivery can cause the engine to misfire.
2. Poor Fuel Economy: Inefficient fuel atomization and combustion can lead to higher fuel consumption.
3. Rough Idling: Uneven fuel distribution can cause the engine to idle roughly.
4. Increased Emissions: Faulty nozzles can lead to incomplete combustion, increasing exhaust emissions.
5. Loss of Power: Insufficient fuel delivery can reduce engine power and performance.

Maintenance Tips
- Regular Cleaning: Use injector cleaners to remove deposits that can clog the nozzles.
- Fuel Quality: Use high-quality fuel to minimize contaminants that can affect the nozzles.
- Periodic Inspection: Regularly inspect and, if necessary, replace the injector nozzles to maintain optimal performance.
- Professional Servicing: Have the fuel injection system serviced by professionals at recommended intervals.
