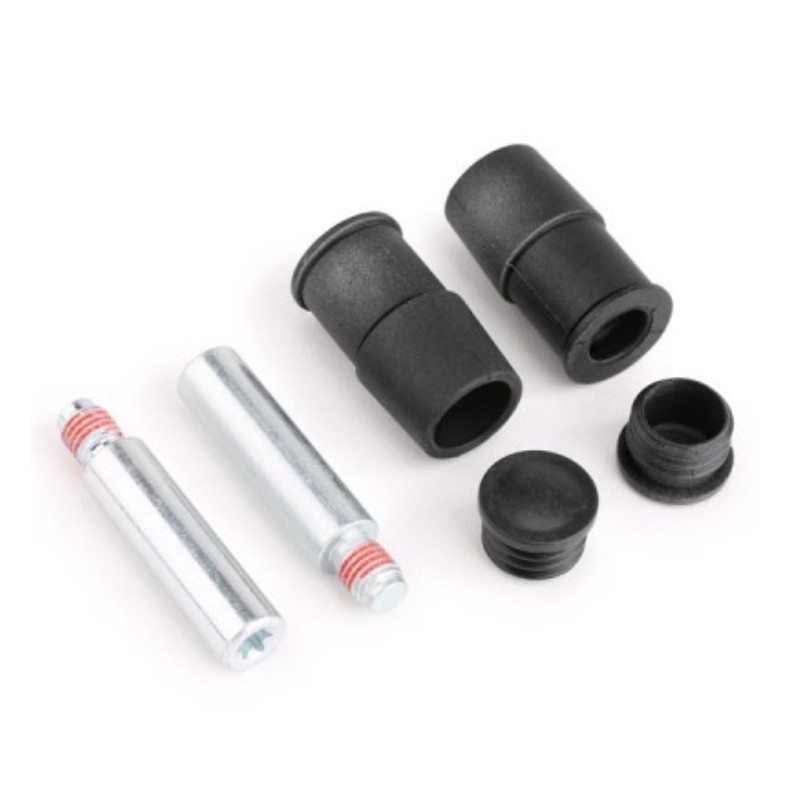

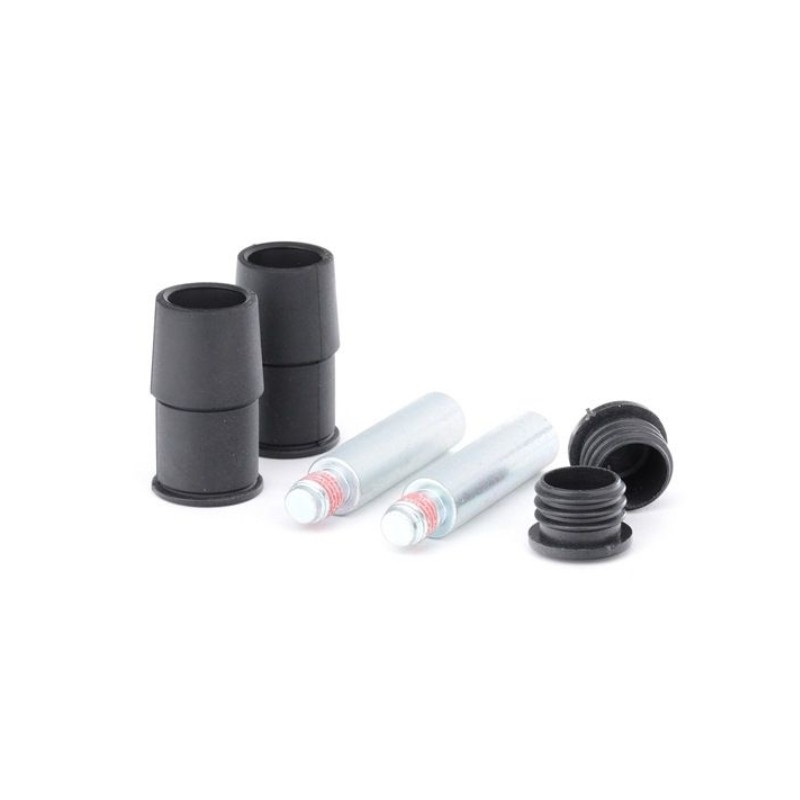

Brake Caliper Guide Sleeve Kit

An accessory kit for disc brake pads, also known as a brake hardware kit, includes various components essential for the proper installation, alignment, and operation of disc brake systems. These kits are designed to replace worn or damaged hardware and ensure the brake pads function efficiently and reliably.

OE Number

Components and Functionality
1. Anti-Rattle Clips:
   - Function: Reduce noise and vibration.
   - Description: Metal clips that hold the brake pads securely in the caliper, preventing them from moving excessively and causing noise during operation.
2. Caliper Pins and Bushings:
   - Function: Allow smooth movement of the caliper.
   - Description: Pins and bushings that enable the caliper to slide back and forth. They ensure the even application of braking force and prevent uneven wear of the brake pads.
3. Abutment Clips (Pad Retaining Clips):
   - Function: Secure the brake pads in the correct position.
   - Description: Metal clips that fit into the caliper bracket, holding the brake pads in place and ensuring they are properly aligned with the brake rotor.
4. Guide Pin Boots:
   - Function: Protect the guide pins from dirt and moisture.
   - Description: Rubber boots that cover the guide pins, preventing contamination that could cause the pins to seize and impair the caliper's movement.
5. Shims:
   - Function: Reduce noise and vibration.
   - Description: Thin layers of material that fit between the brake pad and the caliper. They help dampen vibrations and reduce noise during braking.
6. Spring Clips:
   - Function: Maintain proper pad spacing.
   - Description: Springs that keep the brake pads in position and ensure they return to their original position after the brake pedal is released.

Importance of the Accessory Kit
1. Safety:
   - Ensures all components are functioning correctly, which is critical for safe braking performance.
2. Performance:
   - Helps maintain proper brake pad alignment and movement, ensuring optimal braking efficiency and response.
3. Longevity:
   - Replacing worn or damaged hardware with new components from the accessory kit can extend the life of the brake pads and other brake system parts.
4. Noise Reduction:
   - Properly functioning hardware reduces noise and vibration during braking, leading to a smoother and quieter operation.

Installation and Maintenance Tips
1. Regular Inspection:
   - Periodically check the condition of the brake hardware during routine brake maintenance. Look for signs of wear, corrosion, or damage.
2. Replacement:
   - When replacing brake pads, it is advisable to also replace the hardware kit. This ensures that all components are in optimal condition and can prevent premature wear of the new brake pads.
3. Correct Installation:
   - Ensure all components are installed correctly according to the manufacturer's instructions. Incorrect installation can lead to improper brake function and safety hazards.
4. Lubrication:
   - Apply a small amount of high-temperature brake grease to the guide pins and contact points to reduce friction and wear. However, avoid getting grease on the brake pads or rotor surface.

Summary
Using an accessory kit when servicing disc brakes helps ensure that the entire braking system functions smoothly and reliably, contributing to the overall safety and performance of the vehicle. Proper installation and maintenance of these components are essential for optimal braking efficiency and noise reduction.
